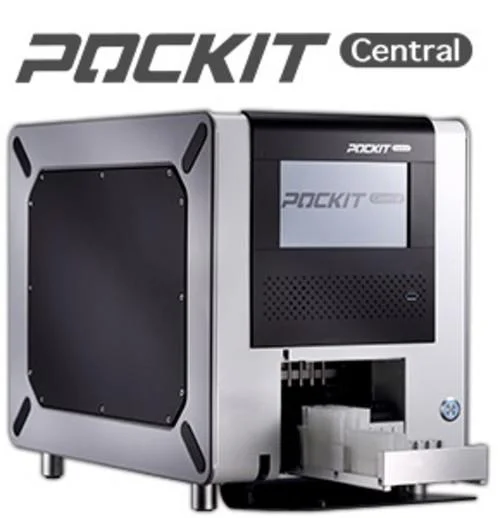

POCKIT Central PCR

Veterinary PCR Analyzer

The POCKIT™ Central Nucleic Acid Analyzer (POCKIT™ Central) is a bench top sample-in answer-out molecular detection system. It integrates magnetic bead-based nucleic acid extraction, fluorescence-based insulated isothermal PCR (iiPCR) amplification/detection, and liquid handling technologies to offer a walk-away protocol for nucleic acid detection. Results are displayed on the monitor in less than 1.5 hours; the data is automatically stored in an internal storage space and can be exported via a USB flash drive or WiFi (using an enabled USB adapter).

The user-friendly interface and ready-to-use cartridge-based consumables allow users to drastically reduce hands-on time and simplify laboratory workflow.

POCKIT Central – Benchtop veterinary PCR at your fingertips.

• Sample in, result out in 85 minutes.
• Fully integrated extraction, amplification and detection in one instrument.
• Test multiple samples or assays in any one run, with our straightforward process.
• Over 190 assays available across small animal, equine, farm and exotic practice.
• Integrated QA with every test for peace of mind.

Segment:

Healthcare

Division:

Veterinary

• Insulated isothermal PCR
• All steps are fully automated – load your sample and reagent and walk away
• Touchscreen operation with a simple user interface
• Bar code scanning as standard for easy patient and test identification
• Integrated internal quality assurance on every test
• Process up to 8 samples in one run
• Over 190 assays available with regular new test additions
• Small sample size
• Results on screen in just 85 minutes
• Reagents can be used immediately – no preparation or prewarming required
• Supported by our own team of specialists and technicians
• Results stored on the instrument or can be exported to USB
• Integration to your patient records via fixed link or WiFi

Dimensions

310 mm (W) x 480 mm (D) x 400 mm (H)

Net weight

21 kg

Power supply

100-120/200-240 V AC, 50/60 Hz, 2A

Fuses

2A, 250V AC,  5 × 20 mm fast-acting, low breaking capacity glass tube fuses

Storage condition

10 ~ 40˚C, 55±25% RH

HORIBA POCKIT Central Assay List

AHPND/EMS Plasmid

Echinococcus canadensis

Mycoplasma gallisepticum

Actinobacillus Pleuropneumonia

EHP

NDV-class 1

Aeromonas salmonicida

Ehrlichia canis

NDV-class 2

Africa Swine Fever Virus

EHV-1

NDV-LaSota

AHPND/EMS Toxin 1

EHV-3

Neospora caninum

ALV-J

EHV-4

NHPB

Anaplasma phagocytophilum

EIAV

Norovirus GI/GII

Anaplasma platys

FCoV

Nosema ceranae

Avian Influenza H9

FCV

Paenibacillus larvae

Avian metapneumovirus

Feline Parvovirus

Parvovirus

Avian Reovirus (Asia & America regions only)

FeLV

Parvovirus (wild type)

Babesi caballi

FHV

PCV2

Babesia gibsoni

Filariasis (Brugia spp.)

PDCoV

Bacillus anthracis PL3

Filariasis (Wuchereria bancrofti)

PEDV

Bacillus anthracis pXO1

FIV

Porcine parvovirus

Bacillus anthracis pXO2

Flavobacterium psychrophilum

PPRV

Baculovirus penaei

FMDV

PRRSV NADC30-like

Bartonella henselae

Fowl adenovirus (Pan Adv, type 4, type)

PRRSV-CN

Bluetongue Virus

FV3 Rana Virus

PRRSV-EU

Bordetella bronchiseptica

Haemophilus parasuis

PRRSV-NA

Bovine Leukemia Virus

IHHNV

Pseudomonas aeruginosa

Bovine Papular Stomatitis Virus

IMNV

Pseudorabies Virus -gB gene

Bovine Tuberculosis

Infectious Bovine Rhinotracheitis

Pseudorabies Virus -gE gene

Brachyspira hyodysenteriae

Infectious bronchitis virus

Pv NV

Brucella abortus

Infectious Bursal Disease Virus

Q Fever

Brucella melitensis

Infectious Laryngotracheitis

R. communis (Ricin)

Brucella spp.

Influenza A

REV

BVDV-1

Influenza H3N8

Rift Valley Fever Virus

BVDV-2

Influenza H5 (Asian Lineage)

Rotavirus A

C. difficile

Influenza H5 (American Lineage)

Salmonella spp.

Campylobacter fetus

Influenza H7

SARS-CoV-2

Candidatus Mycoplasma haemominutum

Influenza HP-H7 with insertion

SFTSV (Severe fever thrombocytopenia syndrome virus)

Candidatus Mycoplasma turicensis

Influenza N9

SHIV

Canine Adeno Virus 2

IRIDO-Megalocytivirus

Streptococcus agalactiae

Canine Babesia

IRIDO-Ranaviruses

Streptococcus equi

Canine Influenza Virus

ISAV

Streptococcus iniae

Canine Leishmaniasis

JEV

Streptococcus suis

Carp Edema Virus (CEV)

KHV

SVA

CDV

Lawsonia intracellularis

SVCV

Chagas Disease

Leishmaniass

Swine Influenza Virus (Type A)

Chicken infectious anemia virus

Leptospirosis

Taylorella equigenitalis (CEM)

Chikungunya virus

Leptospirosis lipL32

Theileria equi

Chlamydia psittaci

Lumpy Skin Disease Virus

Tilapia Lake Virus (TiLV)

Chlamydophila felis

Lyme disease

Toxoplasma gondii

CHV

Marek's Disease

Tritrichomonas foetus

CMNV

Marek's Disease serotype 3 (HVT)

TSV

CPiV

MBV

VHSV

CRCoV

Mec A gene for MRSA

Vibrio alginolyticus

Crimean-Congo Hemorrhagic Fever

MERS-CoV

Vibrio fluvialis

CSFV

Mink enteritis virus

Vibrio harveyi

Cytauxzoon felis

Mr NV

VNN

D. immitis

Mycoplasma felis

WSSV

Dengue Virus

Mycoplasma haemofelis

Yellow Fever Virus

Duck Virus

Mycoplasma hyopneumoniae

YHV

Enteritis Virus

Mycoplasma pneumoniae

Zaire Ebolavirus

E. cuniculi

Mycoplasma suis

Zika Virus

Enteritis Virus

Mycoplasma synoviae

POCKIT Central General Flyer
