• Integrated barcode reader (samples, QC and reagents) and thermal printer (full data printout and graphs)
• User-friendly interface (color touch screen, virtual keyboard)
• Complete Quality Control Program (3 QC levels import in one time, Levey-Jennings, XB, overlapping)
• Embedded Data Management: Data transfer with USB key to archive or download data, high results capacity, customized reports.
• Compatible with innovative reagent pack or bottle systems
Weight
(OT) 30.9 lbs / 16 k, (CT) 35.7 lbs / 17 kg
Power supply
100 V to 240 V - 50 Hz to 60 Hz
Dimensions (HWD)
(in) 16.9 x 14.2 x 14.2 / (cm) 43 x 36 x 36
Printer
Built-in thermal printer
Throughput
50 tests/hour (CT) - 60 tests/hour (OT)
Data Management
Complete QC menu, logs (reagents, calibration, maintenance, errors, blank cycle), easy data transfer (USB), Transmission of patient & QC results to LAN (local area network), Mono-directional connection, All-in-one QC import, overlapping
Memory
1000 patients results with histograms
Screen
LCD colour touch screen (8.4\'\')
Parameters (19)
WBC, RBC, RDW CV, HGB, MPV, HCT, MCV, PLT, MCH, MCHC, LYM# & LYM%, MON# & MON%, GRA# & GRA%, PDW*, PCT*, RDW SD*.
Graphics
PLT, RBC, WBC curves
Blood Volume
CBC + 3DIFF mode: 10 μL
Stability
48 hours post-draw stability(at refrigerated temperature)

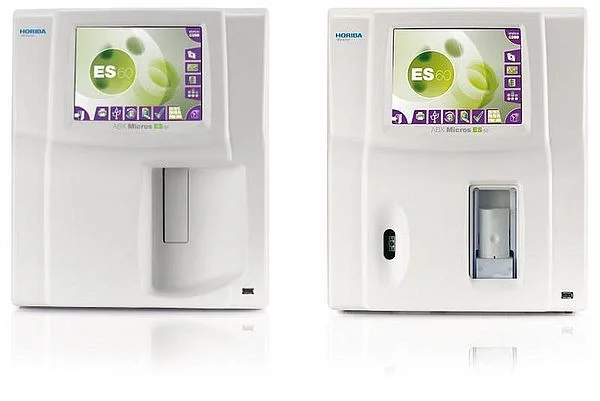

Operating sample mode
Open tube or Closed Tube
Identification
Alphanumeric, Integrated barcode reader
* RUO parameters (Research Use Only)
Parameters
Precision (%CV)
Linearity
WBC
< 2.5 (at 4 - 10.0 x 10^3/μL)
0 - 100 x 10³/µL
RBC
< 2.0 (at 4-7 x 10^6/μL)
0 -8 x 10^6/µL
HGB
< 1.5 (at 12-18 g/dL)
0 - 26 x g/dL
HCT
< 2.0 (at 36-54 %)
0 - 80%
PLT (whole blood)
< 5.0 (at 200-500 x10^3/μL)
0 - 2200 x 10³/µL (whole blood)
0 - 4000 x 10³/µL (PLT concentrate)

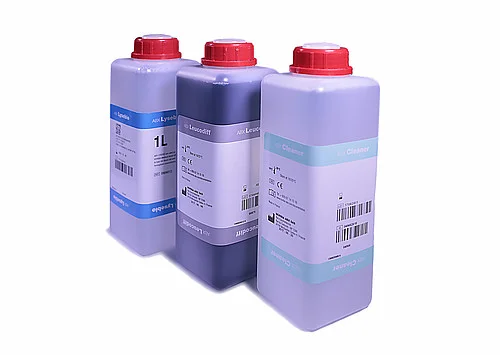

Blood Controls & Calibrators
Reference
Description
2042208
ABX Minotrol 16 - 2L
2 x 2.5 mL vial
2042202
ABX Minotrol 16 - 2N
2 x 2.5 mL vial
2042209
ABX Minotrol 16 - 2H
2 x 2.5 mL vial
Reference
Description
2032002
ABX Minocal
2 mL vial
N: normal level, H: high level, L: low level
Recommended by HORIBA
